描述

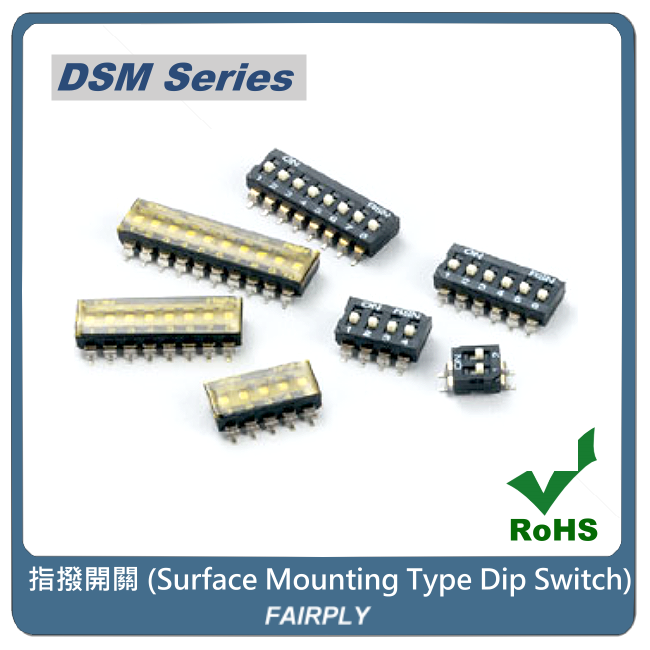

產品系列 : DSM  /  包裝 : 捲裝  /  水平式SMD

Specification
ELECTRICAL
● Electrical life : 2000 operation cycles per switch 24VDC, 25mA.
● Non-Switching Rating : 100mA, 50 VDC
● Switching Rating : 25mA, 24VCD.
● Contact resistance :
(a) 50mΩ max. at initial     (b) 100mΩ max. after life test.
● Insulation resistance : 100MΩ min. (at 500VDC)
● Dielectric Strength : 500VAC/1 minute.
● Capacitance : 5pF max.
● Circuit : Single pole single throw.

MECHANICAL
● Mechanical life : 2000 operations per cycle switch
● Operation Force : 800gf max.                 ● Stroke : 2.0mm
● Operation Temp : -25° C to +70° C        ● Storage Temp : -40° C to +85° C
