描述
最小包裝數 : 1000
MOQ : 1000
包裝方式 : 袋裝

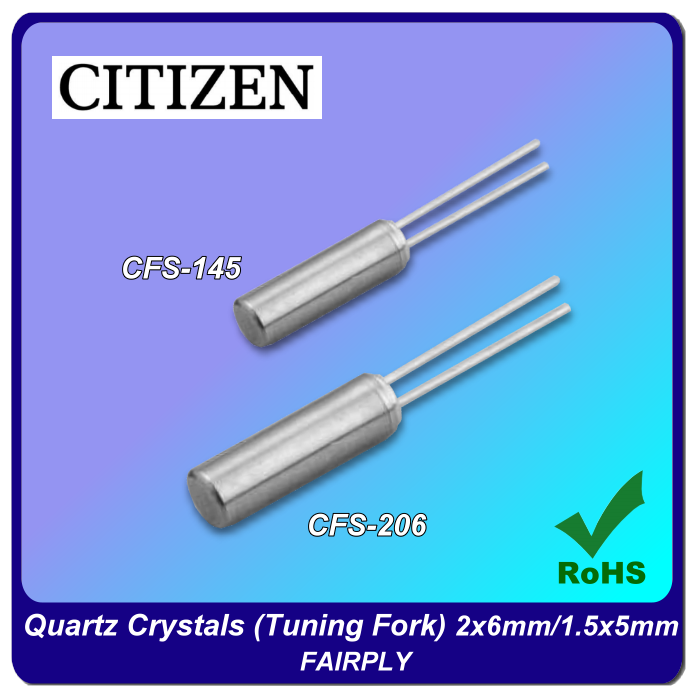

CITIZEN CFS-206/CFS-145 Quartz Crystals
CITIZEN CFS-206/CFS-145 Quartz Crystals
32.768KHz (KHz) RANGE CRYSTAL UNIT
Features
● Nominal frequency range : 32.768kHz
● Frequency tolerance : ±5ppm , ±10ppm , ±20ppm (+25 °C)
● Operating temperature : – 40 °C to +85 °C
● ESR
CFS-206 : 35 kΩ Max.
CFS-145 : 40 kΩ Max.
Applications
● Watch / Clock / Security devices / Consumer products
RoHS compliant / Pb free
尺寸 / 封裝
CFS-145 : D1.5 x L5.1mm
CFS-206 : D2.0 x L6.2mm
Product Number
CFS-206(145) 32768 DZFB-XX
