描述

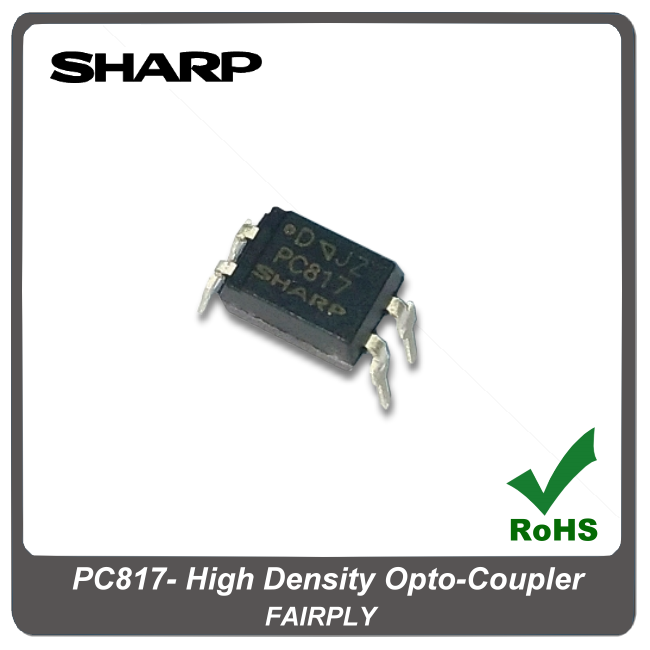

廠牌:SHARP
產地:中國
封裝樣式:  4PIN-DIP  /  包裝:管裝

● Features
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-ing)
3. High collector-emitter voltage (VCEO:80V(*))
4. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output (Viso(rms): 5.0 kV)

(*) Up to Date code “P7” (July 2002) VCEO: 35V.
From the production Date code “J5” (May 1997) to “P7” (July 2002), however the products were screened by BVCEO?70V.
● Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),file No. E64380 (as model No. PC817)
2. Package resin : UL flammability grade (94V-0)
● Applications
1. I/O isolation for MCUs (Micro Controller Units).
2. Noise suppression in switching circuits.
3. Signal transmission between circuits of different po-tentials and impedances.

---
