介紹
MS (Manganese Silicon) lithium rechargeable batteries, developed by SII, use silicon oxide as the anode and a lithium manganese composite oxide as the cathode. As a result, they offer long cycle life and highly stable overdischarge characteristics.
FEATURES
Large discharge capacity :For high operational voltage range of 3.3V to 2.0V.
Long cycle life
Excellent overdischarge characteristics :
Continued stable capacity characteristics even after the battery is overdischarged down to 0.0V.
APPLICATIONS
Backup power for Real Time Clock, or memory.
E.g. Digital Camera, Action Camera, GPS equipment, Event Data Recorder,Handy Terminal, PC, Smart phone.
產地 : 日本
尺寸 : 6.8×2.1mm
電池類別 : 二次可充式鋰電池
標準包裝數(SPQ) : 1000
最小包裝數(MPQ) : 1000
最小訂購數(MOQ) : 1000
Specifications

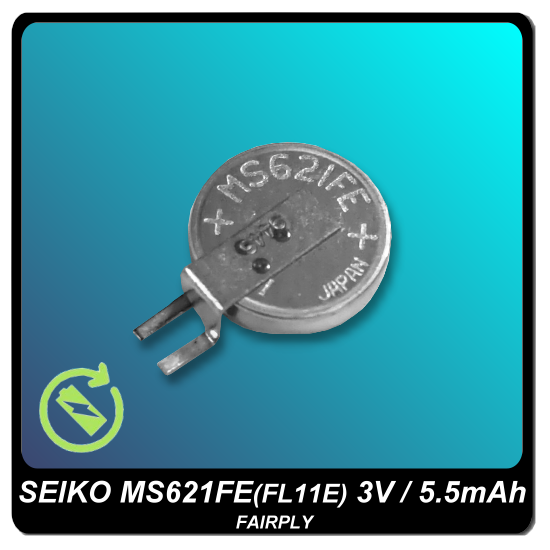

Model : MS621FE
Nominal Voltage (V) : 3.0
Charge Voltage(Standard Charge Voltage)(V) : 2.8 to 3.3 (3.1)
Nominal Capacity (mAh) : 5.5
Internal Impedance(Ω) : 80
Standard Discharge Current (mA) : 0.015
Maximum Discharge Current (Continuous)(mA) : 0.25
Operating temperature range : -20°C to +60°C
Approved by UL : MH15628
